B&Ton BT-6005GS 4-port POE Fiber Switch

B&Ton BT-6005GS 4-Port POE Fiber Switch in Bangladesh

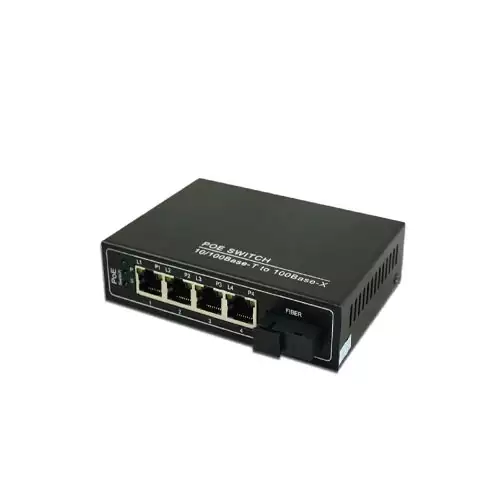

The B&Ton BT-6005GS is a compact and powerful 4-Port PoE Fiber Switch designed to meet the networking needs of small offices, security systems, and industrial applications. Featuring 4×10/100Mbps RJ45 PoE ports and 1×fiber uplink SC port, it combines power and data transmission in a single, reliable unit, making it ideal for powering and connecting PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points. This switch supports the IEEE 802.3af/at PoE standards, delivering up to 15.4W or 25.5W per PoE port, and automatically detects and protects non-standard Ethernet terminals. With a non-blocking bandwidth of 1.6Gbps, it ensures smooth data transmission and stable network performance even under heavy loads. The store-and-forward switching method and 2K MAC address table help optimize traffic and ensure accurate data delivery. Built with high-quality components, the BT-6005GS supports MDI/MDIX auto-sensing on all RJ45 ports, eliminating the need for crossover cables and simplifying installation. Its fiber uplink port allows for long-distance transmission of up to 20 kilometers, making it suitable for remote or extended network environments. The compact design (measuring only 118×85×27mm and weighing 0.4kg) also makes it easy to install in tight or limited spaces. Operating in a temperature range of 0°C to 55°C, with a humidity tolerance of up to 95% non-condensing, it’s suitable for a variety of indoor environments. LED indicators on the front panel provide real-time status monitoring for power, connectivity, and PoE activity. The BT-6005GS is CE, FCC, RoHS, and EN60950 certified, ensuring it meets industry standards for safety and electromagnetic radiation. With a MTBF (Mean Time Between Failures) of 190,000 hours, this device offers dependable performance over many years of operation. For users seeking a reliable, easy-to-deploy, and cost-effective PoE fiber switch, the B&Ton BT-6005GS delivers robust performance and essential features in a compact, industrial-grade design.

FAQs:

1. Does the BT-6005GS support both IEEE 802.3af and 802.3at PoE standards?

Yes, it supports both IEEE 802.3af (15.4W) and 802.3at (25.5W) standards, making it compatible with a wide range of PoE devices.

2. What is the maximum transmission distance using the fiber uplink port?

The SC fiber uplink port supports transmission distances of up to 20 kilometers, depending on the fiber type and environment.

3. Is the BT-6005GS suitable for outdoor installation?

No, it is designed for indoor use. While it operates in a wide temperature and humidity range, it should be installed in a protected, non-condensing environment.
