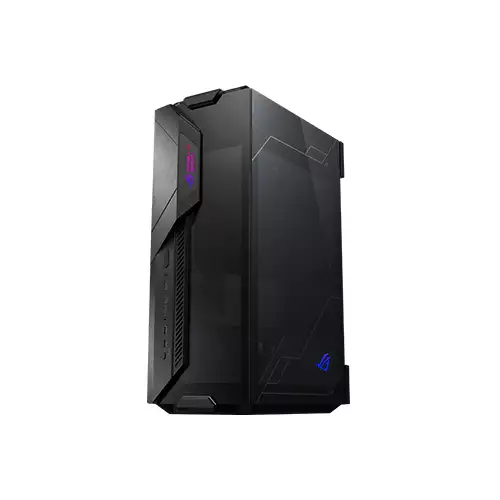

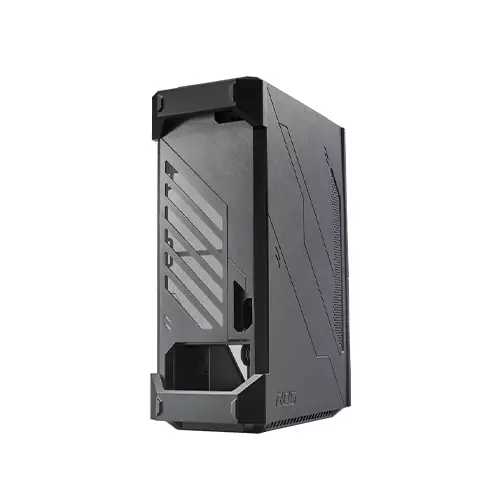

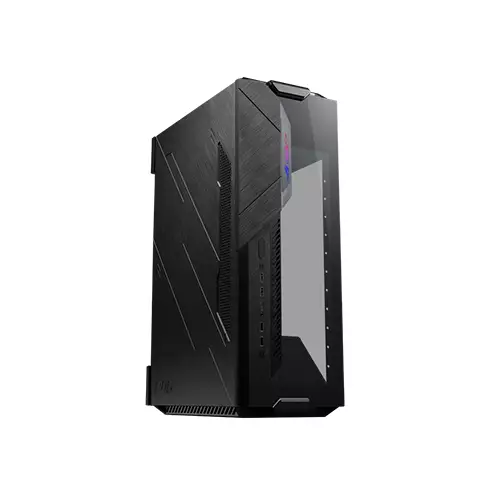

ASUS ROG Z11 Gaming Case Specification
|
| Main Features | - Type : Mini-ITX Tower
- Color: Black
- Case Material: Aluminum, Steel, Tempered Glass, ABS Plastic
- With Power Supply: No
- Power Supply Mounted : Bottom
- Motherboard Compatibility : Mini-ITX / Mini-DTX
- Side Panel Window: Yes
- LED : Integrated Addressable RGB LEDs in the front and side panels
- Dust Filters: Removable dust filters on the top, bottom, left, front and back sides
- Dimensions (H x W x D): 20.91" x 7.64" x 15.20"
- Weight: 19.25 lbs.
|
Radiator Support
| - Rear: 120, 240 mm (Thickness: 30mm)
- Bottom: 120 mm (Thickness: 30mm)
|
Fan Support
| - Top: 2 x 120mm / 2 x 140 mm (2 x 140 mm Pre-installed)
- Bottom: 1 x 120mm / 1 x 140 mm (1 x 140 mm Pre-installed)
- Rear: 2 x 120 mm
|
Front Ports
| - 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.2 Gen 1 TYPE A
- 2 x USB 2.0 TYPE A
- 1 x Headphone / Microphone
- Power On Button
- Reset Button
- 1 x ARGB LED-illuminated Mode/Color Button
|
| Expansion | - Internal 3.5" Drive Bays 1 (0)
- Internal 2.5" Drive Bays 1 (4)
- Expansion Slots 2
|
Clearance
| - Max GPU Length 320 mm
- Max CPU Cooler Height 130 mm
- Max PSU Length 160 mm
|
Related Video:
ASUS ROG Z11 Gaming Case
The ASUS ROG Z11 Gaming Case. Built for high versatility while optimizing airflow for high-performance systems, this black steel and aluminum mid-tower case features a unique 11° tilt design that angles the motherboard tray to provide an additional 40mm of space at the back of the motherboard. This extra space enhances heat dissipation around the CPU and graphics card in addition to the M.2 SSD slots, which can be installed on the back of the mini-ITX/DTX motherboard. However, the ROG Z11 still has room for a 3-slot graphics card without having to use a riser. The tilted design also creates striking visuals when its internal components are accented with the case's customizable Aura Sync RGB lighting effects and viewed through the tempered glass side panel. The ASUS ROG Z11 Gaming Case can also be placed in either a vertical position or a horizontal one, providing high versatility for different setups, environments, and preferences. Both angled and regular power cables are included to accommodate either orientation. above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximize utility, flexibility and connectivity. The patented 11° tilt design provides optimized airflow and heat dissipation to create an innovative solution that maximizes thermal performance with demanding hardware—such as an ATX power supply or a 3-slot graphics card without a riser cable. For fans of water cooling, Z11 offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm gray tempered glass panels.

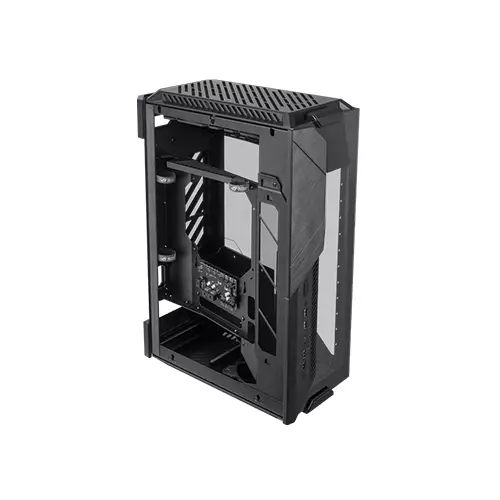

Patented 11° Tilt Design
Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.
Extensive Connectivity
A built-in extension hub enables builders to connect up to six PWM fans and three addressable RGB fans or LED strips, and offers an extra USB 2.0 port to make assembly easier. Plenty of I/O ports and an ARGB lighting control button on the front panel make connecting components and devices a breeze.
Removable Dust Filters
Removable dust filters on the top, bottom, left, front and back sides provide complete protection from dust, and make short work of cleaning and maintenance.

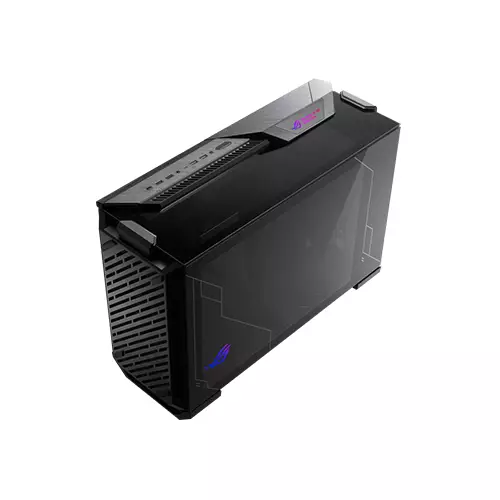

Dual Orientation
ROG Z11 can be placed in either the vertical or horizontal position, allowing users to make any build their own. On top of providing the flexibility to orient the case according to workspace availability and preferences, Z11 also empowers users to choose the orientation that is optimal for the components in their build. Angled and regular power cords are also included in the accessory box to conveniently complement each position.
Aura Sync RGB Lighting
Integrated addressable RGB LEDs in the front and side panels can be customized using a dedicated control button or with Aura Sync lighting software. These allow ROG Z11 to flash with millions of colors and a range of effects, which can be synchronized with a vast ecosystem of Aura Sync-compatible components for ultimate personalization.
