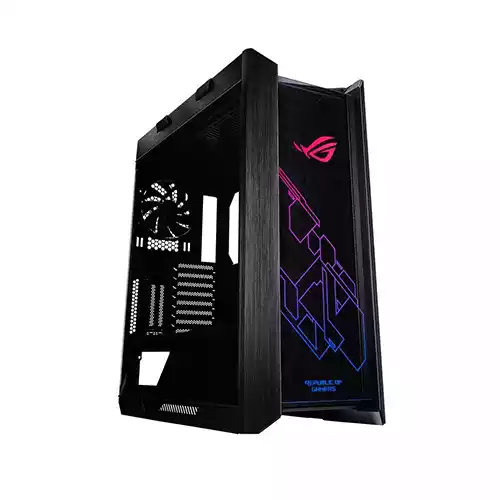

ASUS ROG Strix Helios GX601 RGB 420mm Aura Sync Mid Tower Gaming Case
Product Pricing
EMI Start From*
| ASUS ROG Strix Helios Specification |
| Interface |
Dimensions : 250 x 565 x 591 mm (WxDxH) Case Size : ATX Mid Tower Form Factor : ATX/micro ATX/Mini ITX/EATX (12”x10.9”) Expansion Slots : 8+2 (additional vertical) Weight : N.W. 18 kg Color : Black Power Supply : ATX I/O Port: 1 x USB 3.1 Gen 2 (Type-C) 4 x USB 3.1 Gen 1, 1 x Headphone, 1 x Microphone, LED & Fan Control Buttons |
| Radiator Support |
Front: 120, 140, 240, 280, 360, 420 mm Top 120, 140, 240, 280, 360 mm Rear: 120, 140mm |
| Cooling Support |
Front: 3 x 140mm/ 3 x 120mm (Radiator + Fan Thickness: Max. 90mm) Top: 2 x 140mm/ 3 x 120mm (Radiator + Fan Thickness: Max. 60mm) Rear: 1 x 140mm/120mm |
| Pre-installed Fans |
Front: 3 x 140mm Rear: 1 x 140mm |
| Drive Bays |
2 x Int x 2.5”/3.5” Combo Bay 4 x Int x 2.5” Bay |
| Clearance |
Maximum GPU Length: 450 mm (Riser Cable above 200mm in length is required for one GPU install in vertical position) Maximum CPU Cooler Height: 190 mm Maximum PSU Length: 220 mm Removable Dust Filters: Front: Slide-Out / Top: Slide-Out / Bottom: Slide-Out |
ROG Strix Helios

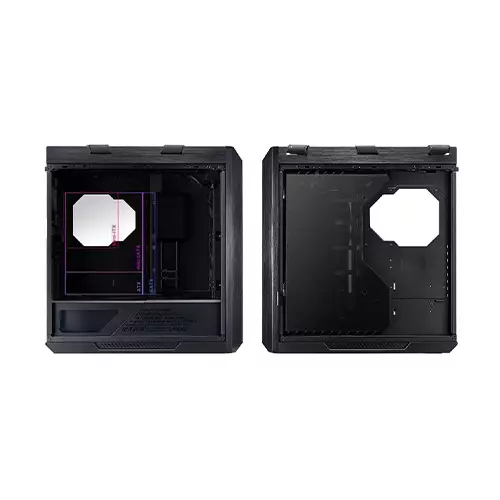

ROG Strix Helios is a premium mid-tower gaming case with three tempered-glass panels, refined aluminum frame and integrated front-panel RGB lighting. Built-in cable management, including a multifunction cover with GPU braces, keeps the interior sharp and tidy. Engineered for expandability and performance, it's ready for an up to EATX motherboard and serious water-cooling setups – making it the perfect choice for a classic ROG showcase build. Click Here For More Info...
PREMIUM DESIGN & AESTHETICS
ROG Strix Helios is made for showcase builds with three 4mm, smoked tempered-glass panels fitted in a refined brushed-aluminum frame. A stunning display of dynamic RGB lighting is integrated into the front panel to outshine the competition.
AURA SYNC RGB LIGHTING
Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button or with Aura software, ROG Strix Helios can cast millions of colors and a range of effects that can be synchronized with a vast ecosystem of components to augment your build.
ADVANCED I/O PANEL
The I/O panel is loaded with connectivity, including a reversible USB 3.1 Type-C™ port. It also features dedicated fan speed and RGB lighting controls for making adjustments on-the-fly.

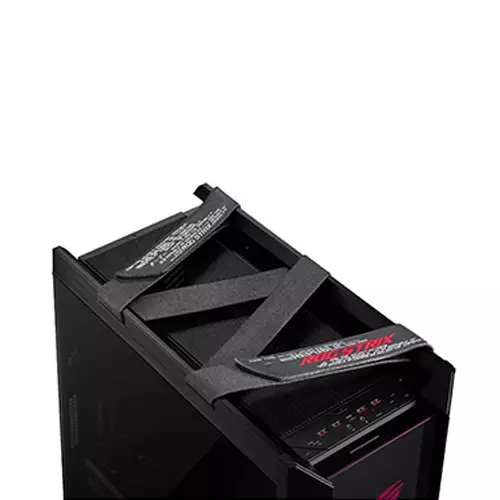

COMFORTABLE CASE HANDLES
Easily carry your prized build to LAN parties using the ergonomic and stylish fabric handles that are rigorously tested to support up to 50 kg.
