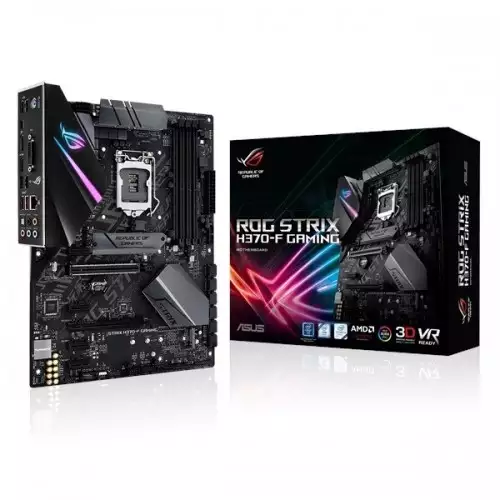

Asus ROG Strix H370-F 8th Gen Gaming Motherboard
- Chipset: Intel® H370
- Intel® Socket 1151 for 8th Gen
- ATX Form Factor 12 inch x 9.6 inch
- Supports AMD 2-Way CrossFireX Technology
SPECIFICATIONS
Processor
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Mainboard
Memory
Slots: 4 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory;
Supported Memory: Supports Intel® Extreme Memory Profile (XMP);
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Mamory 64GB
Storage
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
Graphics
|Supported Graphics Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports AMD 2-Way CrossFireX Technology
Networking & Connectivity
Audio & Microphone
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
Ports
1 x RGB Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
2 x 3D Mount screw port(s)
Display Port (s) 1 x DVI-D
1 x DisplayPort
USB (s) 1 x USB 3.1 Gen 2 (black)USB Type-CTM,
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 2.0
Physical Specification
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty Information
DESCRIPTION
ROG STRIX H370-F GAMING
●︎ LGA1151 socket: Ready for 8th Gen Intel® Core™ desktop processors.
●︎ Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
●︎ Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
●︎ 3D-printing-friendly design: Dedicated 3D mounts make quick work of fitting 3D-printed parts.
●︎ Onboard M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.
●︎ Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
●︎ Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
●︎ Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C™ connectors.
●︎ Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play.
**3 years Warranty.
