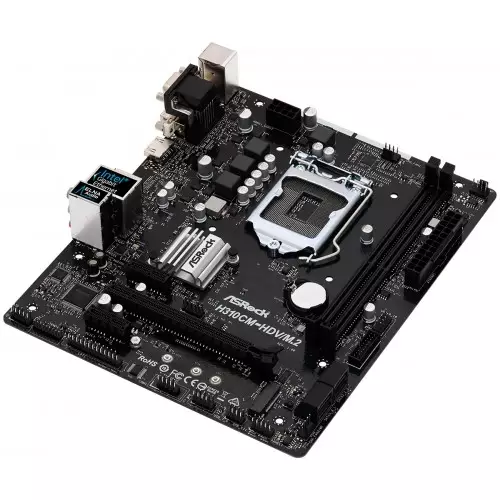

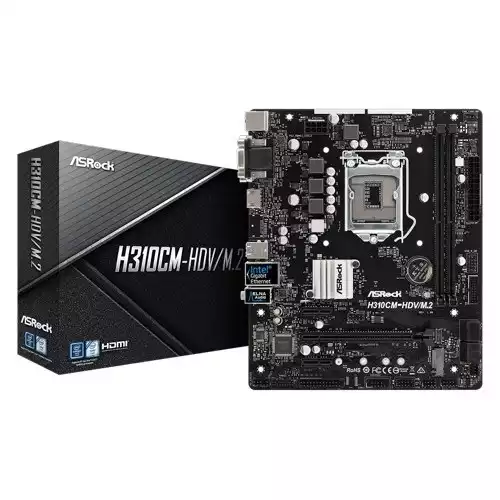

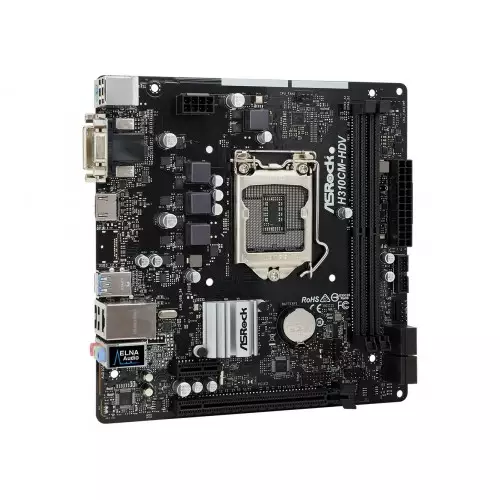

Asrock H310CM-HDV/M.2 9th Gen Motherboard
Asrock H310CM-HDV/M.2 9th Gen Motherboard
Asrock H310CM-HDV/M.2 9th Gen Motherboard - 1
Asrock H310CM-HDV/M.2 9th Gen Motherboard - 3

Asrock H310CM-HDV/M.2 9th Gen Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061766
Brand : ASRock
Model : H310CM-HDV/M.2
Warranty : 3 Years
  • OS: Microsoft Windows 10 64-bit
  • Chipset: Intel® H310
  • ASRock Live Update & APP Shop
  • High-Density Glass Fabric PCB

SPECIFICATIONS

Processor

Supported CPU Supports 9th and 8th Gen Intel Core Processors (Socket 1151)

- Supports CPU up to 95W

- 4 Power Phase design

- Supports Intel Turbo Boost 2.0 Technology

Mainboard

Chipset Intel H310
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake-up events

SMBIOS 2.7 Support

CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

Memory

Memory system memory: 32GB

Storage

Supported Storage -4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
-1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)

Graphics

Graphics Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics



DirectX 12


HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Networking & Connectivity

LAN 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

Audio & Microphone

Audio HD Audio Jacks: Line in / Front Speaker / Microphone

Ports

Slots 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

2 x PCI Express 2.0 x1 Slots
USB 2 x USB 2.0 /
1 x USB 3.1
HDMI 1 x HDMI Port

Physical Specification

Form Factor Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm

Solid Capacitor design

Warranty Information

Warranty ASRock H310CM-HDV/M.2 MOTHERBOARD Comes With 03 Years Warranty

DESCRIPTION

ASRock H310CM-HDV/M.2 MOTHERBOARD Main Features:
  • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Intel® Gigabit LAN

4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
