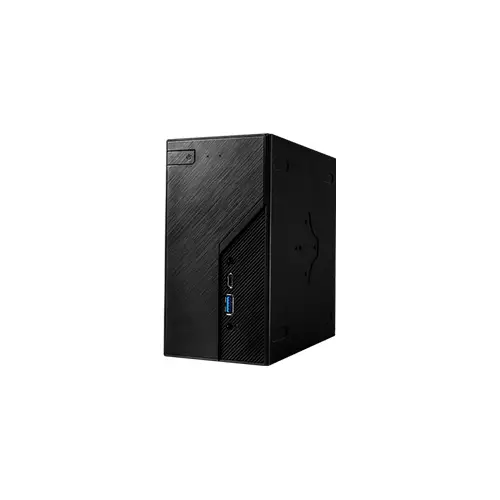

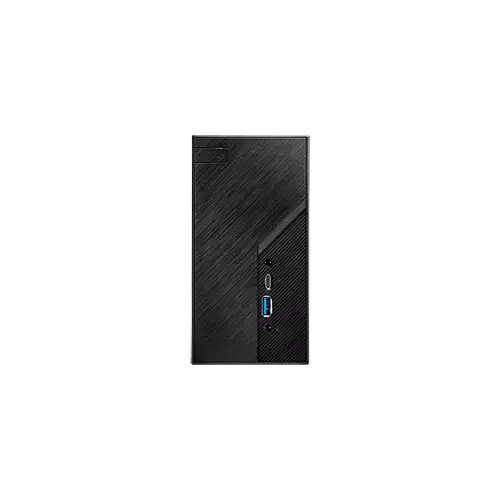

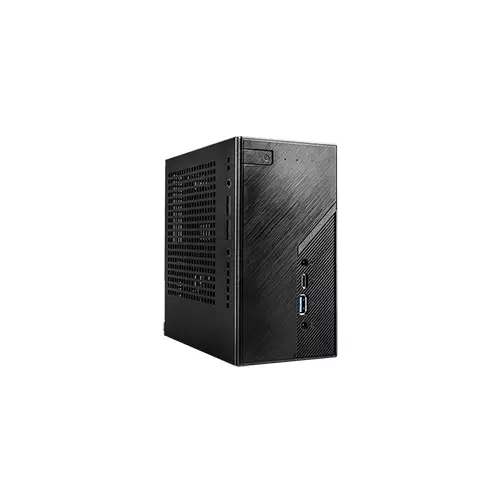

ASRock DeskMini H470 Series 10/11th Gen Portable Mini PC
- Type-C, USB, Ultra M.2 PCIe, etc.
- Supports 10th/11th Gen Intel Processors (LGA1200)
- Dual DDR4-2933MHz SO-DIMMs
- 2 x DisplayPort, HDMI & D-Sub
SPECIFICATIONS
Processor
Mainboard
Memory
Storage
- 1 x Ultra M.2 Socket (M2_1), support type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (Socket M2_2 works with 11th Gen Intel® Core™ processors only)
Graphics
- DisplayPort 1.4
- DisplayPort 1.4 (with USB Type-C Alt Mode)
- D-Sub**
Networking & Connectivity
WLAN: 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Audio & Microphone

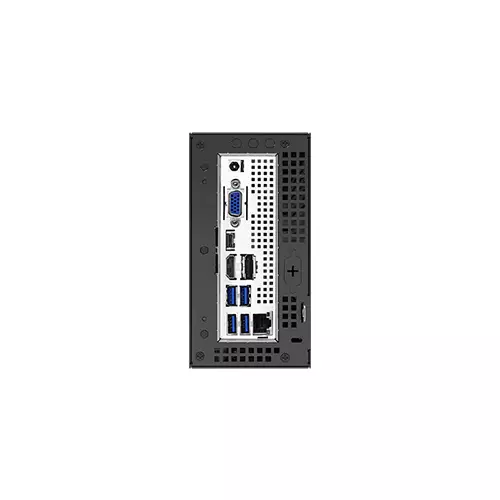

Ports
1 x Front Panel Header
2 x 4-Pin fan
connectors (CPU, SYS)
1 x DC-In Jack (Supports 19V Power Adapters)
1 x Internal Speaker Header (4-Pin)
1 x Chassis Intrusion Header (2-Pin)
1 x Audio Header (4-Pin)
Software
Physical Specification
Warranty Information
DESCRIPTION
ASRock DeskMini H470 Series 10/11th Gen Portable Mini PC in Bangladesh
Power of Rocket!
DeskMini H470 adopts LGA1200 CPU socket, supports Intel® the latest 8 cores Core i9-11900 65 watts Processor. Delivering ultimate computing performance within a tiny PC.
Dr.MOS
The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Heatsink on MOSFET
ASRock DeskMini H470 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system’s stability in loading.
ASRock BFB Technology
ASRock DeskMini H470 supports exclusive Base Frequency Boost (BFB) Technology, allows user to bump non-K processors speed to enhance system performance.
Dual Channel DDR4-2933
ASRock DeskMini H470 supports dual-channel DDR4-2933MHz high-speed memory. It is 10% faster than the previous generation and brings higher performance.
USB Alternate Mode
ASRock DeskMini H470 adopts Rear USB Type-C USB Alternate Mode providing 4K resolution DisplayPort signal, up to 60 watt power delivery, and 5Gbps data transfer through one cable.
Rapid USB Connectivity
ASRock DeskMini H470 supports USB 3.2 Gen2 Type-A on front panel, delivering 10Gbps speedy data transfer bandwidth. In addition, DeskMini H470 brings 4 x USB 3.2 Gen1 ports on rear side.
Optane Memory Technology
The Supports on Intel® Optane™ memory technology and Intel® Optane™ storage technology redefines a new standard of high performance and responsiveness.
