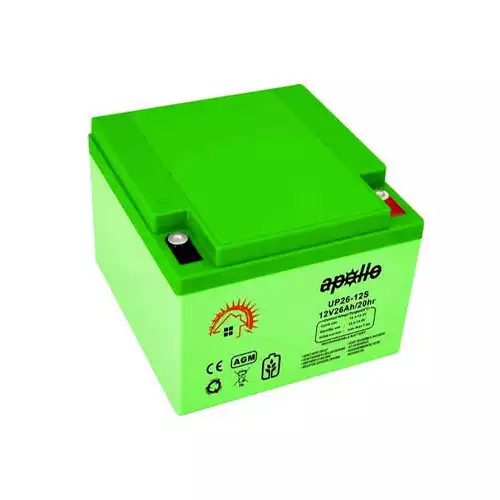

Apollo 12V-26Ah AGM Battery Overview
Battery Model
| - Nominal Voltage 12V
- Rated capacity (20 Hour rate) 26Ah
- Cells Per battery 6
|
Dimension
| - 175mm x 166mm x 126mm x 126mm
|
Approx Weight
| |
Capacity @ 25℃ ( 77 o F )
| - 20 hour rate(1.34A,10.5V) : 26.8Ah
- 10 hour rate(2.60A,10.5V) : 26Ah
- 5 hour rate(4.449A,10.5V) : 22.245Ah
- 1 hour rate(14.4A,9.6V) : 14.4Ah
|
Max.discharge current
| |
Internal Resistance
| - Full charged at 25℃: Approx 13.5mΩ
|
Capacity affected by Temp.(20 HR)
| - 40℃ (104 o F ) : 102%
- 25℃ (77 o F ) : 100%
- 0℃ (32o F ) : 85%
- -15℃ (5 o F ) : 64%
|
Self Discharge @25℃ (77 o F)
| - After 3 months storage : 91%
- After 6 months storage : 82%
- After 12 months storage : 64%
|
Charge method @25℃ (77 o F)
| - Cycle Use : 14.4-14.7V (Initial charging current less than 3.6A)
- Float Use : 13.50-13.80V
|
| Warranty | |
Apollo 12V-26Ah AGM Battery in Bangladesh
APOLLO General (GP) Series VRLA batteries are designed withAGM (Absorbent Glass Mat) technology, High performance plates and electrolyte to give extra power output for common power backup system. GP Series Batteries are the general purpose batteries with 5 years floating design life at 25 ℃ Meet with IEC, BS,JIS and Eurobat standard.UL(MH62092),CE approved.
Features :
- Heavy Duty Grid
- Mechanized assembly
- Non-spillable construction
- High Reliability and Stability
- Sealed and Maintenance-free
- Long Life and low self-discharge design
