APC SRC6KUXI SMART 6000VA ONLINE UPS - Product Details

Product Recommendations

Product Information

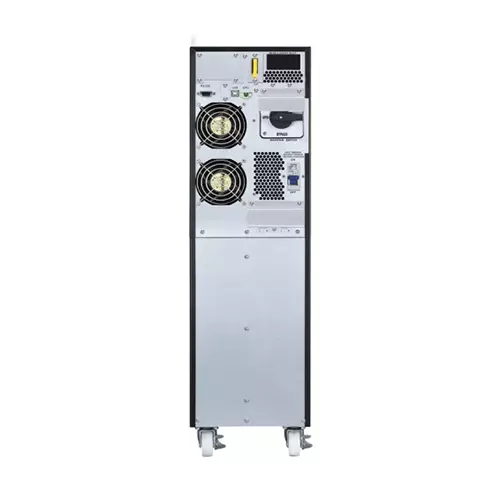

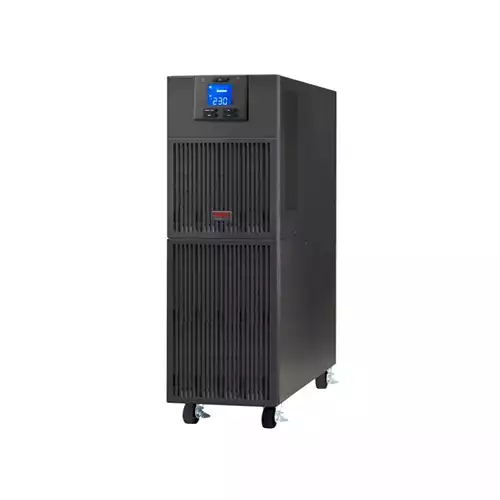

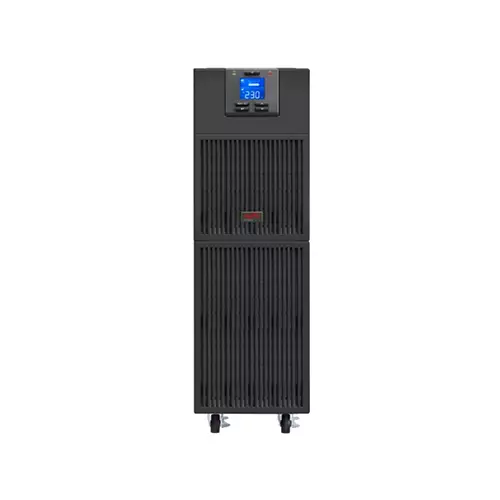

APC SRC6KUXI SMART 6000VA ONLINE UPS
APC SRC6KUXI SMART 6000VA ONLINE UPS-cover-thumbnail APC SRC6KUXI SMART 6000VA ONLINE UPS-gallery-1 APC SRC6KUXI SMART 6000VA ONLINE UPS-gallery-2

APC SRC6KUXI SMART 6000VA ONLINE UPS

Stock : Call For Price
PID : P00025064039
SKU : TBD
Brand : OTHERS
Model : SRC6KUXI
Warranty : 1 years
★ ★ ★ ★ ★
0 Reviews
  • Output power capacity: 6.0kWatts
  • Nominal Output Voltage: 230V
  • Nominal Input Voltage: 230V
  • Input Connections: Hard wire 3-wire

    • APC SMART 6000VA online UPS Overview

    Output
    • Max Configurable Power (Watts): 6.0kWatts / 6.0kVA
    • Output Voltage Note:Configurable for 220 : 230 or 240 nominal output voltage
    • Efficiency at Full Load: 94.0 %
    • Output Voltage Distortion: 1 %
    • Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
    • Other Output Voltages: 220 V, 240 V
    • Load Crest Factor: 3 : 1
    • Topology: Double conversion online
    • Waveform type: Sine wave
    • Bypass: Internal bypass (automatic and manual)
    Input
    • Input frequency: 40 - 70 Hz Auto sensing
    • Input voltage range for main operations: 110 - 300 Half load, 176 - 300 Full loadV
    • Efficiency at Full Load: 94.0 %
    • Other Input Voltages: 220 V, 240 V
    Batteries & Runtime
    • Battery type: Lead-acid battery
    • Typical recharge time: 7hour(s)
    • Nominal Battery Voltage: 192 V
    • Expected Battery Life (years): 3 - 5
    • Battery Charge Power (Watts): 235 Watts
    Communications & Management
    • Interface Port(s): DB-9 RS-232, Intelligent Smart Slot, USB
    • Control panel: Multifunction LCD status and control console
    • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
    • Emergency Power Off (EPO): Yes
    • Available SmartSlot™ Interface Quantity: 1
    Surge Protection and Filtering
    • Surge energy rating: 600Joules
    Physical
    • Maximum Height: 685MM, 68.5CM
    • Maximum Width: 190MM, 19.0CM
    • Maximum Depth: 374MM, 37.4CM
    • Net Weight: 54.0KG
    • Shipping weight: 66.0KG
    • Shipping Height: 910MM, 91.0CM
    • Shipping Width: 290MM, 29.0CM
    • Shipping Depth: 495MM, 49.5CM
    • Color: Black
    Environmental
    • Operating Temperature: 0 - 40 °C
    • Operating Relative Humidity: 0 - 95 (Non-condensing) %
    • Operating Elevation: 0 - 3000meters
    • Storage Temperature: -15 - 60 °C
    • Storage Relative Humidity: 0 - 95 (Non-condensing) %
    • Storage Elevation: 0 - 15000meters
    • Audible noise at 1 meter from surface of unit: 55.0dBA
    • Online thermal dissipation: 1172.0BTU/hr
    • Protection Class: IP20
    Conformance
    • Approvals: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI
    Sustainable Status
    • RoHS: Compliant
    Warranty
    • 1 year

    APC SMART 6000VA online UPS in Bangladesh

    1. Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
    2. Automatically starts up the connected equipment upon the return of utility power.
    3. Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
    4. Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
    5. Minimizes installation costs by enabling the use of smaller generators and cabling.Maximizes battery performance, life, and reliability through intelligent, precision charging.
    6. Customize UPS capabilities with management cards.
    7. Text and mimic diagrams that display modes of operation, system parameters and alarms.
    8. Provides management of the UPS via a serial port.
    9. Provides management of the UPS via a USB port (not available on all models).
