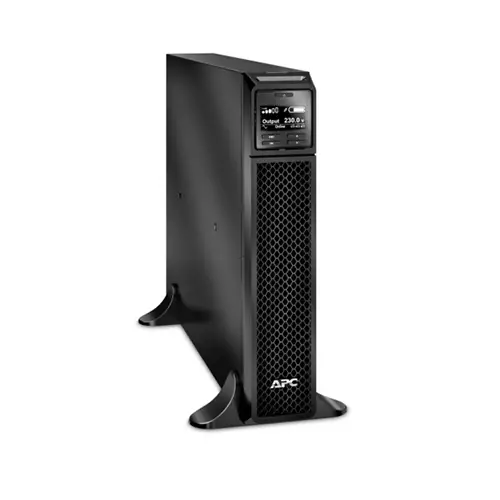

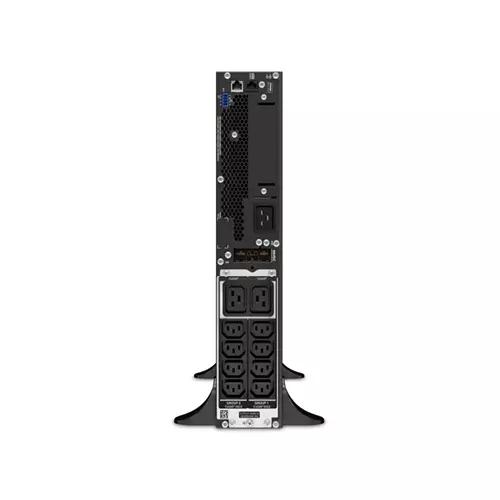

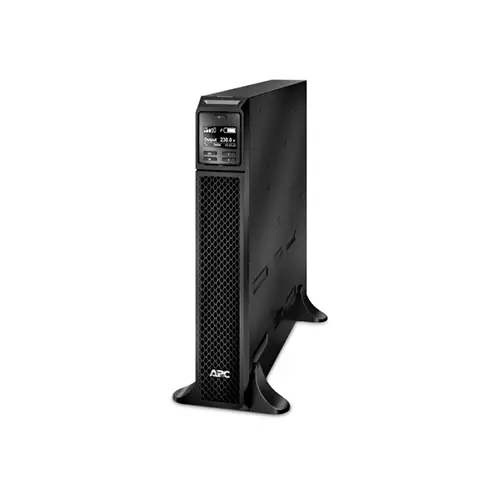

APC Smart 3000VA online UPS Overview
Output
| - Max Configurable Power (Watts): 2.7kWatts / 3.0kVA
- Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
- Output Voltage Distortion: Less than 2 %
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages: 220 V, 240 V
- Load Crest Factor: 3 : 1
- Topology: Double conversion online
- Waveform type: Sine wave
- Bypass:Internal bypass (automatic and manual)
|
Input
| - Battery type: Lead-acid battery
- Typical recharge time: 3hour(s)
- Nominal Battery Voltage: 96 V
- Replacement Battery: APCRBC152
- Expected Battery Life (years): 3 - 5
- RBC Quantity: 1
- Battery Charge Power (Watts): 168 Watts
- Extendable Run Time: 1
|
Batteries & Runtime
| - Battery type: Lead-acid battery
- Typical recharge time: 3hour(s)
- Nominal Battery Voltage: 96 V
- Replacement Battery: APCRBC152
- Expected Battery Life (years): 3 - 5
- RBC Quantity: 1
- Battery Charge Power (Watts): 168 Watts
- Extendable Run Time: 1
|
Communications & Management
| - Interface Port(s): RJ-45 Serial, Smart-Slot, USB
- Control panel: Multifunction LCD status and control console
- Audible Alarm: Audible and visible alarms prioritized by severity
- Emergency Power Off (EPO): Yes
- Available SmartSlot™ Interface Quantity: 1
|
Surge Protection and Filtering
| - Surge energy rating: 340Joules
|
Physical
| - Maximum Height: 432MM, 43.2CM
- Maximum Width: 85MM, 8.5CM
- Maximum Depth: 635MM, 63.5CM
- Net Weight: 31.3KG
- Shipping weight: 36.74KG
- Shipping Height: 246MM, 24.6CM
- Shipping Width: 599MM, 59.9CM
- Shipping Depth: 871MM, 87.1CM
- Color: Black
- Units per Pallet: 6.0
|
Environmental
| - Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 (Non-condensing) %
- Operating Elevation: 0 - 3048meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95 (Non-condensing) %
- Storage Elevation: 0 - 15240meters
- Audible noise at 1 meter from surface of unit: 55.0dBA
- Online thermal dissipation: 703.0BTU/hr
- Protection Class: IP20
|
Conformance
| - Approvals:CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
|
Warranty
| |
APC Smart 3000VA online UPS in Bangladesh
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- Provides temporary battery power when the utility power is out.
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Minimizes installation costs by enabling the use of smaller generators and cabling.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Easy recovery from overloads; no need to replace a fuse.
