Antec VORTEX 240 AIO ARGB CPU Liquid Cooler Overview

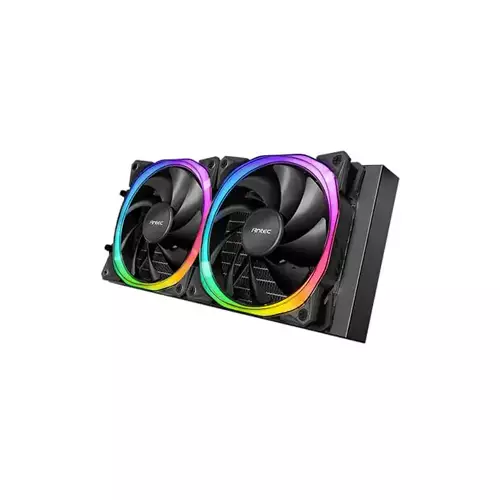

Radiator
| - Radiator Dimensions 277 x 120 x 27 mm
- Radiator Material Aluminum
|
Pump
| - Dimensions ￠67 x 48.5 mm
- Rating Voltage DC 12 V
- Minimum Startup Voltage ≥ 5.0 V
- Fan Speed 2800±10% RPM
- Rated Current 0.25±20% A
- Consumed Power 3.0 W
- Flow rate ≥ 1300 mL / min
- Water Pressure 1.4M
- Operation Temperature -10°C ~ +60°C
- Noise Level ≤ 28 dB(A)
- Lifespan 40,000 hours
- Connector PUMP: 3-pin | LED: 3-pin
|
Fan
| - Model Name Fusion 120 ARGB fan (AH12012FM1)
- Fan Type PWM Fan
- Dimensions 120 x 120 x 25 mm
- Bearing Type Hydraulic Bearing
- LED Type Addressable RGB
- Fan Speed 600±200 ~ 2000±10% RPM
- Airflow 57.93 CFM (max.)
- Air Pressure 2.11 mmH₂O (max.)
- Fan Noise Level 31.24 dB(A)
- Lifespan 40,000 hours
- Connector FAN: 4-pin PWM | LED: 3-pin
- Rated Voltage FAN: DC 12 V | LED: DC 5 V
- Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
- Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A
- Socket Compatibility CPU Intel : LGA 115X / 1200 / 1700 / 20XX
- AMD : AM3/AM4
|

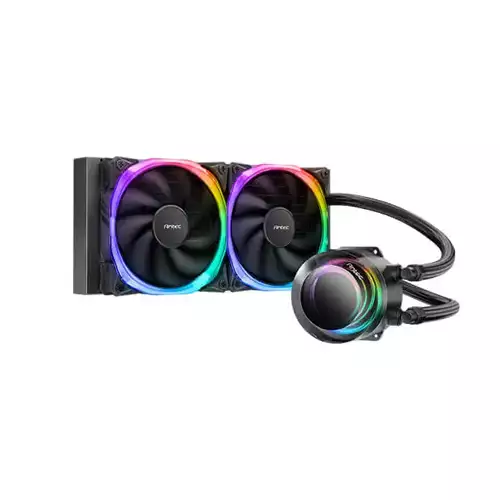

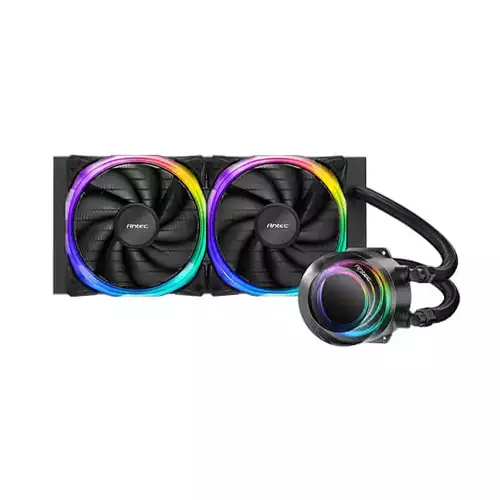

Antec VORTEX 240 All in One ARGB CPU Liquid Cooler
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
