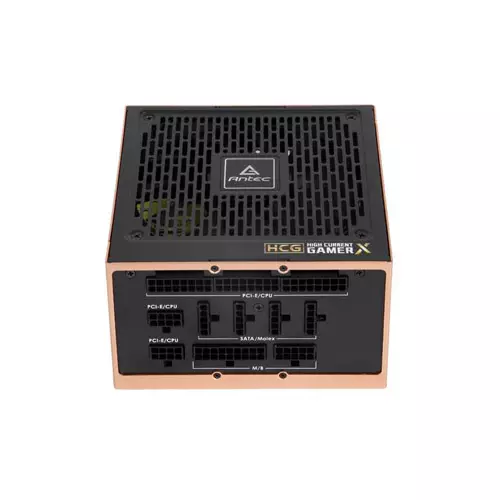

Antec HCG1000 Extreme 1000 Watt Power Supply
Antec HCG1000 1000 Watt Power Supply Overview
| Type | ATX 12V 2.4 |
| Modular | Fully Modular |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 13A-6.5A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 92% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0~50°C |
| Regulatory | cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR |
| Fan | 135mm FDB Fan |
| Certifications | 80 Plus Gold |

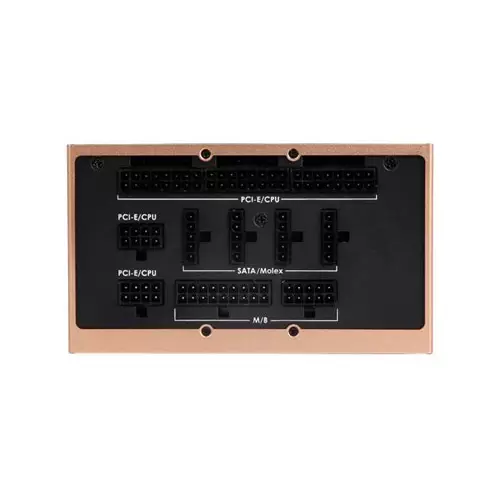

| Connector | 1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 8 x 8(6+2) Pin PCI-E 12 x SATA 6 x Molex 1 x FDD |
| Net Weight | 1.66 Kgs |
| Gross Weight | 3.40 Kgs |
| Dimension | 160(L) x 150(W) x 86(H) |
| Warranty | 10 years |
Antec HCG1000 Power Supply in Bangladesh
Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Extreme power supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.
100% Japanese Capacitors:
Using 100% high-performance Japanese capacitors,the HCG Extreme Gold series ensures the tightest.DC stability and regulation, for reliability that you and your system can count on.
PhaseWave Design:
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
Server-grade 50°C Temperature Rating:
HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.

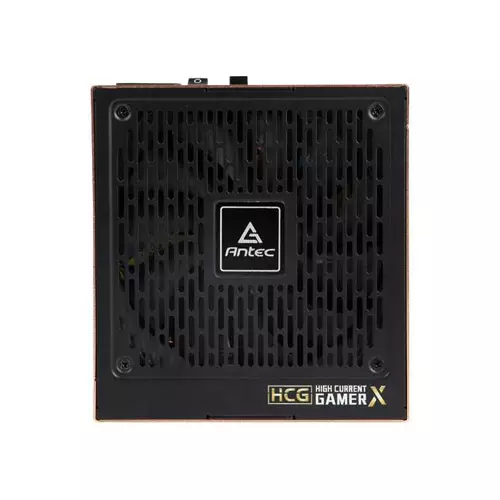

135mm FDB FAN
The whisper-quiet, 135 mm fluid-dynamic bearing(FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.
Features:
- Guaranteed 1000W of Continuous Power from Antec
- 100% Modular－Improves airflow and reduces clutter
- 80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
- PhaseWave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- 16 pin Socket－Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 135mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V - Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
