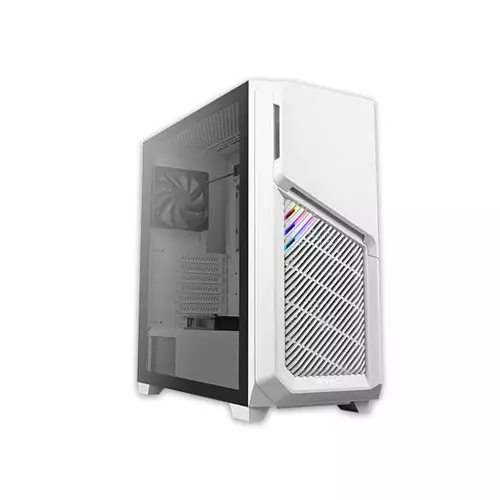

Antec DP502 Flux Case specification
|
| General |
- Type: Mid Tower
- Tempered Glass Panel: Yes
- Motherboard Support: ATX, M-ATX, ITX
- Color(s) White
- Weight 7.55KG
- Dimensions 463 x 220 x 486 mm
- Expansion Slots 7
- I/O Port Power, LED Control Button, 2 x USB3.0, HD-AUDIO
- PSU ≤ 205mm
|
Pre- Installed Fans & Drive Bays
|
- 3 x 120mm ARGB fans in front
- 1 x 120mm fan (Reverse Fan) on PSU shroud
- & 1 x 120mm fan in rear
- 5.25": 1
- 3.5" /2.5": 3/2
- 2.5": 3
|
| Radiator Support | Front: - 120/240/280/360mm (≤ 55mm thickness when fans are installed outside of front panel)
- (≤ 30mm thickness when fans are installed inside of front panel)
- [Max Radiator Length ≤ 405mm]
Top:
- 240/280/360mm (w/o ODD and w/o ODD bracket)
- 240/280mm (w/o ODD but with ODD bracket)
- 120mm(When ODD is installed)
Rear:
- 120mm
- [Max Radiator Length ≤ 405mm]
|
Fan Support
|
- Front : 3 x 120mm/2 x 140mm
- Top:
- 3 x 120mm / 2 x 140mm (w/o ODD and w/o ODD bracket)
- 2 x 120mm / 2 x 140mm (w/o ODD but with ODD bracket)
- 2 x 120mm / 1 x 140mm(When ODD is installed)
- Power Supply Shroud: 2 x 120mm
- Rear: 1 x 120mm
|
Clearance
|
- Maximum Processor Height ≤ 175mm
- Maximum Graphics Card Length ≤ 405mm
|
Related Video:
Antec DP502 Flux Gaming CASE in Bangladesh
The definition of FLUX is Flow Luxury. The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow combined with 5 x pre-installed 120 mm fans. A core element of the design ethos was to provide heightened GPU cooling performance. The DP502 FLUX mid-tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark League to the next generation. All the hubs have a dust plug, preventing them from damage. F-LUX Platform adopts the design of a powerful ventilation system via the lower right-side panel, which pulls cool air into the case through the lower PSU shroud and then up into the main interior; specifically targeting your GPU. Provide incredible cooling to your components with room for a radiator up to 360 mm in the front, 360 mm on the top & 120 mm at the rear. Provide mass airflow to your components with room for up to 9 x 120 mm fans. Electroplating-processed LED on the top left-hand side presents a Sci-Fi vibration. Ready for radiator up to 360 mm in front, 360 mm on top & 120 mm in the rear.
