HUNDURE RAC-960PE Standalone TCP/IP Access Controller
EMI Start From*
HUNDRED RAC-960PE Specification |
| CPU Processor | 32 Bits |
| Read Format | EM (125 kHz ) | Mifare-1 (13.56MHz ) |
| Read Range | 8-10 (max) | 3-5 (max ) |
| Slave Reader | T2 or Wiegand ( 1 Set ) |
| Input Port | 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1) |
Output Port (Built-in) | Relay x 1 (Door Lock or Bell ) |
| Output Port (External) | O.C. Output x 2( Door Lock / Alarm or Siren, external ACU-30 ) |
| Cardholders | 40,000 (max) |
| Events | 100,000 |
| LED Indicator | Power / Comm. |
| LCD Display | 128 x 64 Dot. Graphic Display with backlight |
| Keypad | 17 Key (F1-F4, 0-9, ＊, ＃, Bell) (Sensitive Touch Keypad) |
| Real Time Clock | Yes |
| Beep Tone | Buzzer |
| Water-proof | IP65 |
| ID or IP Setting | Command setting by keypad |
| Power Input | DC 12V / 1A |
| Current Consumption | 500mA. (max. excluding slave reader) |
| Comm. Interface | RS-485 / TCP/IP |
| Comm. Baudrate | RS-485：9,600/19,200 bps-N-8-1, TCP/IP：10/100 Mbps |
| Operating Temp. | 0° C ~ 55° C / 32° F ~ 131° F |
| Relative Humidity | 20% ~ 80%(Non-condensing) |

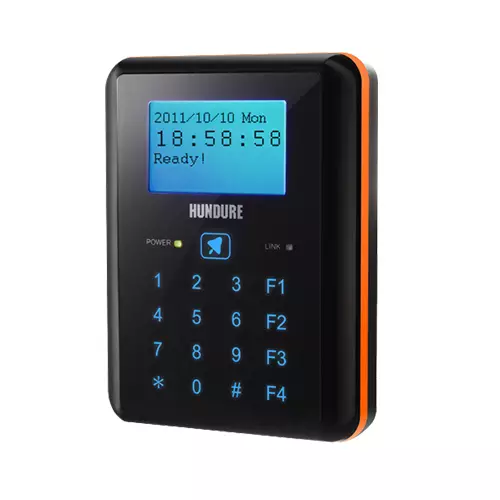

HUNDRED RAC-960PE Standalone TCP/IP Access Controller in Bangladesh
Bell key design. Suit for various locations.Casing tamper proof detection and door tamper alarm. Support swipe card and swipe card with pin codes enter modes.The memory of the standard model is 40,000 cardholders (max) and 100,000 events. Unique ID or Block read format supported. (RAC-960PM V2.0)Slim, stylish design with waterproof sensitive touch keypad with blue backlight.Built-in RS-485 & TCP / IP communication interface to PC.Blacklist and Duress card/code setting. When the door is opened in an emergency, the controller will send a signal to the control center at the same time for tracing and rescue. Programmable disarm code and able to set maximum attempts to trigger re-swipe card alarm. The controller time-out function will avoid intrusion and has self-security. Provide 32 working shifts and 32 siren output. LCD will display the current shift and activate the alarm. Provide 100-holiday schedules per year. Able to connect external slave reader, And support anti-passback to every single door. Provide 128 time zones and time schedules, 8 times conditional unlock door schedules. (per week). Display the name on the LCD screen after swiping the card. Function keys of access control and shifts which are convenient to personnel to generate time attendance reports. On-board lithium battery ensures data storage can reach up to 1 year upon power outage. Conforms to ISO 14443A standard; supporting Mifare card. (RAC-960PM V2.0)
