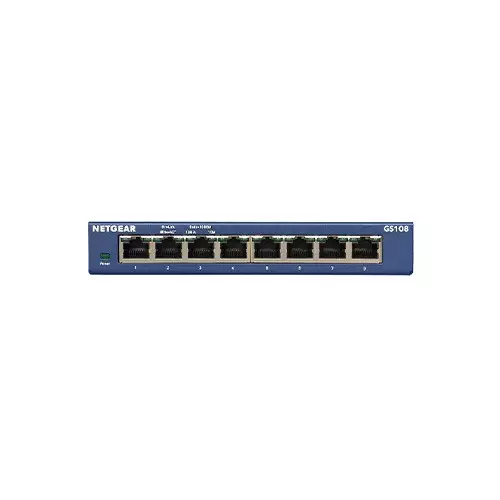

Netgear GS108 8-Port Gigabit Ethernet Unmanaged Switch
TP-link TL-SF1016D V6 16-Port Desktop Switch
TP-link TL-SF1024M 24-Port Desktop Switch
Cudy HS105 5-Port 2.5G Multi-Gigabit Switch
Cudy GS1016 16-Port Gigabit Ethernet Switch
TP-Link TL-SG116 Switch 16-Port Gigabit Desktop
Tp-link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch
Cudy GS1010PE 10-Port Gigabit PoE+ Switch
Cudy GS1024 24-Port Gigabit Ethernet Switch
TP-Link SG2218P Omada 18-Port Gigabit Smart Switch
Switching Capacity - 36 Gbps
Packet Forwarding Rate - 26.78 Mpps
Packet Buffer Memory - 4.1 Mbit
Jumbo Frame - 9 KB
Sale Ends In
31 Mar, 2026 05:30:00 PM
| Networking & Connectivity | |
| Advanced Functions |
Quality of Service: 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode SP (Strict Priority) WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port/Flow based Rating Limit Smoother Performance Storm Control Multiple Control Modes(kbps/ratio) Broadcast/Multicast/Unknown-Unicast Control L2 and L2+ Features: 32 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED L2 Multicast 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles Advanced Features: Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule VLAN: VLAN Group Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN Access Control List: Support up to 230 entries Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action Mirroring Redirect Rate Limit QoS Remark ACL Rules Binding Port Binding VLAN Binding Security: IP-MAC-Port Binding AAA 802.1X Port-based authentication MAC (Host) based authentication Authentication Method includes PAP/EAP-MD5 MAB Guest VLAN Support Radius authentication IP/IPv6-MAC Binding 512 Binding Entries DHCP Snooping DHCPv6 Snooping ARP Inspection ND Detection IP Source Guard 253 Entries Source IP+Source MAC IPv6 Source Guard 183 Entries Source: IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Broadcast/Multicast/Unicast Port Isolation Secure web management through Secure Command Line Interface IP/Port/MAC-based access control IPv6 IPv6 Static Routing and ACL IPv6 Dual IPv4/IPv6 IPv6 Interface Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, MIBs: MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) |
| MAC Address Table |
8k |
| Jumbo Frame |
9 KB |
| Battery And Power | |
| Power Supply |
100-240V AC, 50/60Hz |
| Ports | |
| Interface |
16× 10/100/1000 Mbps PoE+ RJ45 2× Gigabit SFP Slots |
| Physical Specification | |
| Environment |
Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Dimension |
17.3×7.1×1.7 in (440×180×44 mm) |
| Technical Info | |
| Data Transmission Rate |
Switching Capacity: 36 Gbps Packet Forwarding Rate: 26.78 Mpps Packet Buffer Memory: 4.1 Mbit Jumbo Frame: 9 KB |
| Warranty Information | |
| Warranty |
2 Year |
