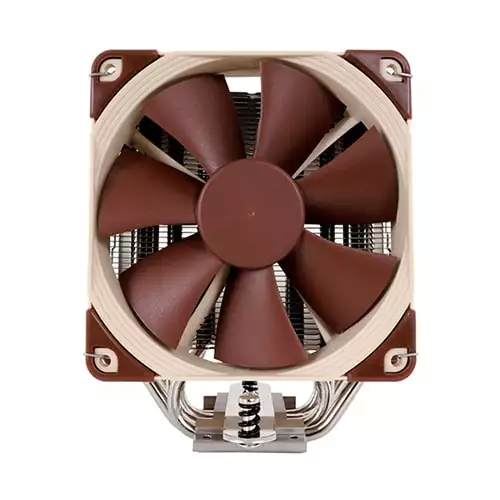

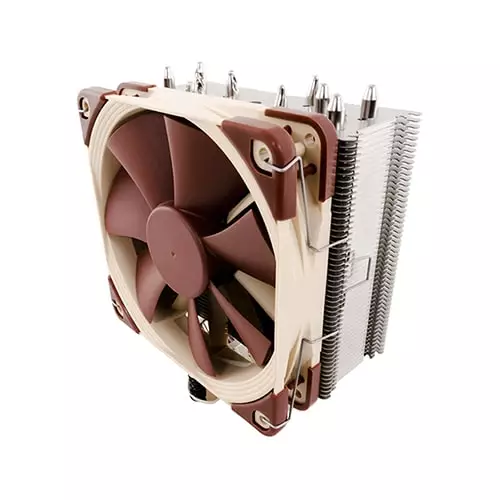

Noctua NH-U12S Premium Air CPU Cooler

Type

• 120x120x25

Fan Speed :

• Max. rotational speed (+/- 10%) : 1500 RPM
• Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM
• Min. rotational speed (PWM, +/-20%) : 300 RPM

Fan Airflow :

• Max. airflow 93,4 m³/h
• Max. airflow with L.N.A. 74,4 m³/h

Noise :

• Max. acoustical noise : 22,4 dB(A)
• Max. acoustical noise with L.N.A. : 18,6 dB(A)

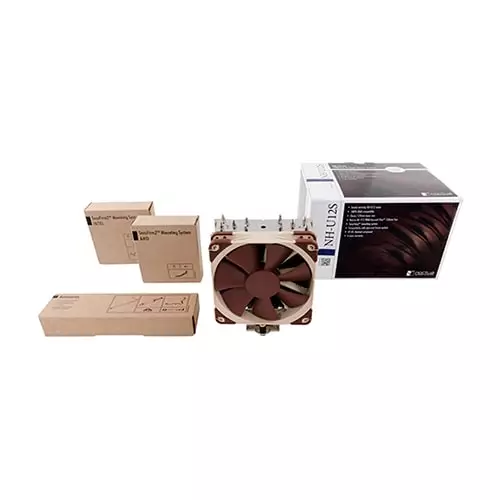

Connector :

• NF-F12 PWM premium fan
• Low-Noise Adaptor (L.N.A.)
• NT-H1 high-grade thermal compound
• SecuFirm2™ Mounting Kit
• Anti-vibration pads and fan-clips for second NF-F12
• Noctua Metal Case-Badge

Material :

• Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Dimension :

• Height (without fan) : 158 mm
• Width (without fan) : 125 mm
• Depth (without fan) : 45 mm
• Height (with fan) : 158 mm
• Width (with fan) : 125 mm
• Depth (with fan) : 71 mm

Weight :

• Weight (without fan) : 580 g
• Weight (with fan) : 755 g

Supporting Motherboards :

• Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4-UxS)
